1. Die-cast Aluminum made body. PC diffuser, with high quality reflective paper.
2. Perfect Aluminum heat sink design. integrated design with built-in driver.
3. Excellent Deep anti-glare design, improve comfortable light environment.
4. Male and female connection of driver and lamp body make light structure maintenance coveniently.
5. Widely applied to household lighting and general commercial lighting areas
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology
8893 308
Light source:
SMD
LED Power:
40W
Beam angle:
70°
CCT:
3000K/4000K/6000K
LED lumens:
3023lm
Color rendering index:
Ra≥80
Operating temperature:
-20℃-+40℃
Working life:
30000H
The output voltage:
37V

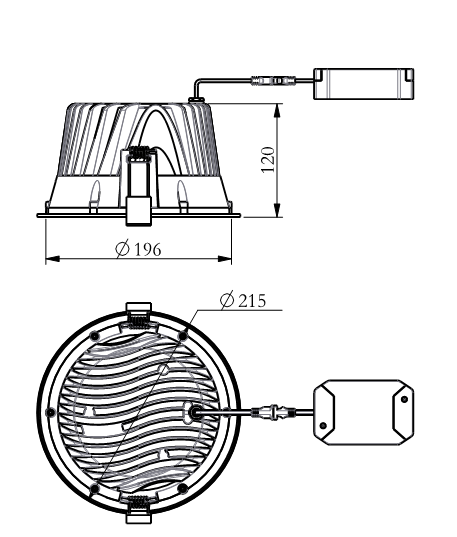

dimension:
Ø230x120
Cut out:
Ø200
Carton:
12pcs
Housing colour:
White,Nickel
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  SMD

LED Power

  9W
  6W
  40W
  30W
  15W

Beam angle

  80°
  70°
  60°

CCT

  6000K
  4000K
  3000K

LED lumens

  566lm
  355lm
  3023lm
  1560lm
  1062lm

Housing colour

  White
  Nickel
